Power Automate Fundamentals # 30: Usage of Less Than Function in Power Automate

Introduction:

In Power Automate, generic arithmetic operations like Less Than will be used to validate provided integer values. As an example, an integer variable used to work with Less than function.

Step 1:

Login to the required Power Apps environment using URL make.powerapps.com by providing username and password and click on Flows on the left-hand side as shown in the below figure.

Step 2:

After Step 1, Click on New Flow and select instant cloud flow and provide the trigger as Manually trigger a flow and click on Create as shown in the below figure.

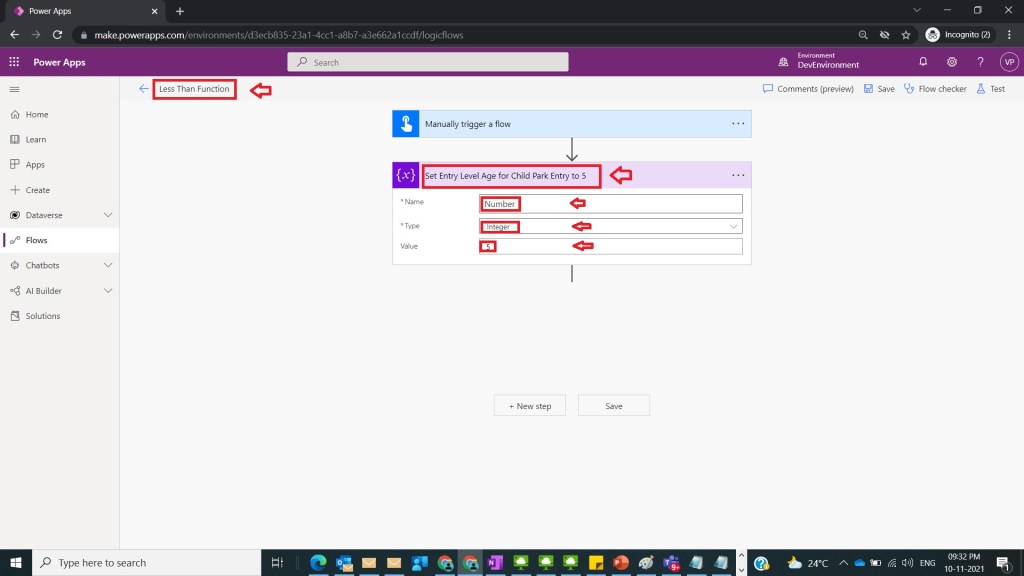

Step 3:

After Step 2, name flow as Less Than Function and take initialize variable and name it as Set Entry Level Age for Child Park Entry  to 5 with the following fields

Name :  Number

Type :  Integer

Value : 5

as shown in the below figure.

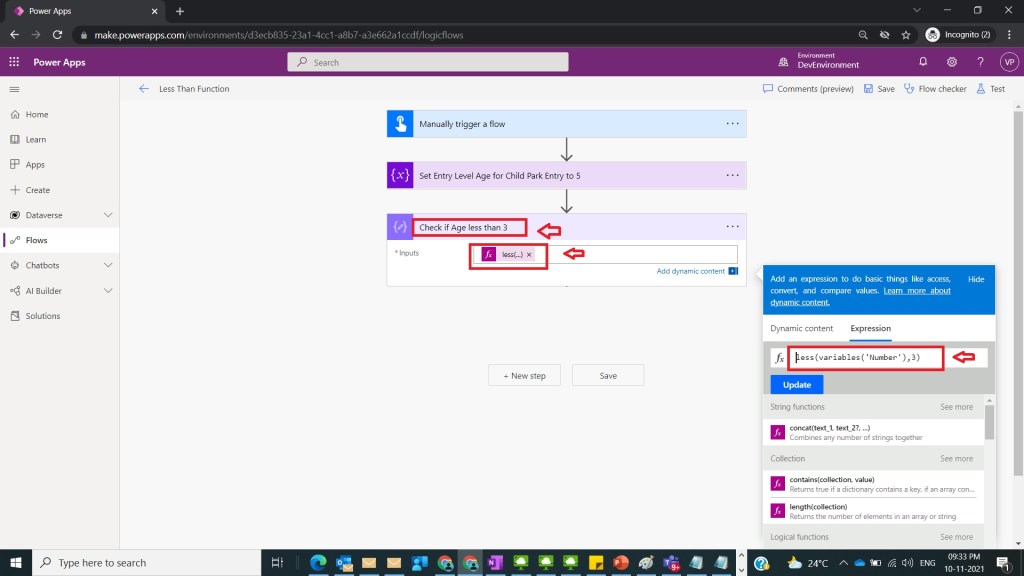

Step 4:

After Step 3, take compose action and name it as Check if Age less than 3  and provide

Inputs: less(value: integer|float|string, compareTo: integer|float|string)

As

less(variables(‘Number’),3)

and click on ok/ update as shown in the below figure.

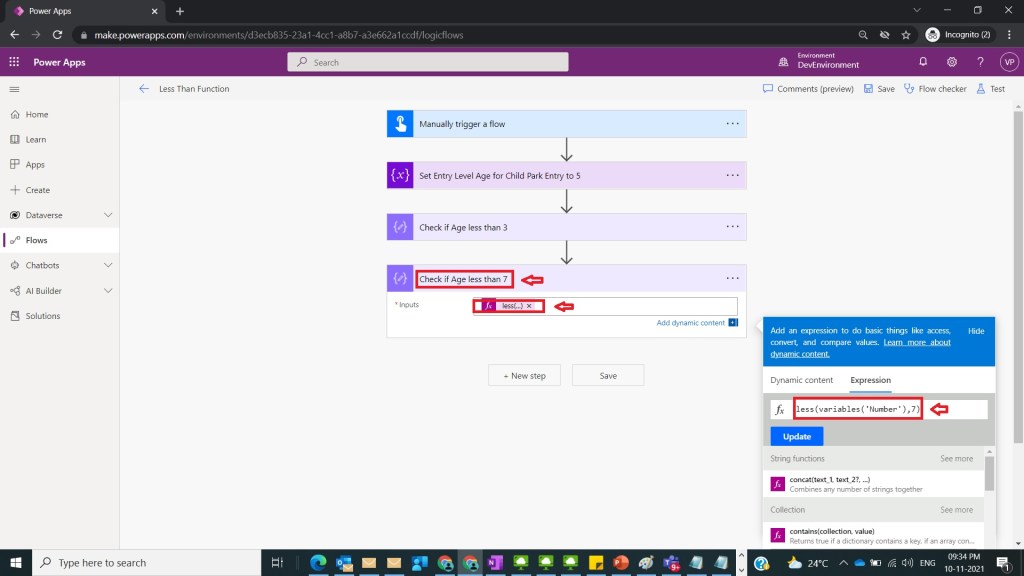

Step 5:

After Step 4, take compose variable and name it Set the Check if Age  less than 7 and provide

Inputs :     less(variables(‘Number’),7)

And click on ok/update as shown in the below figure.

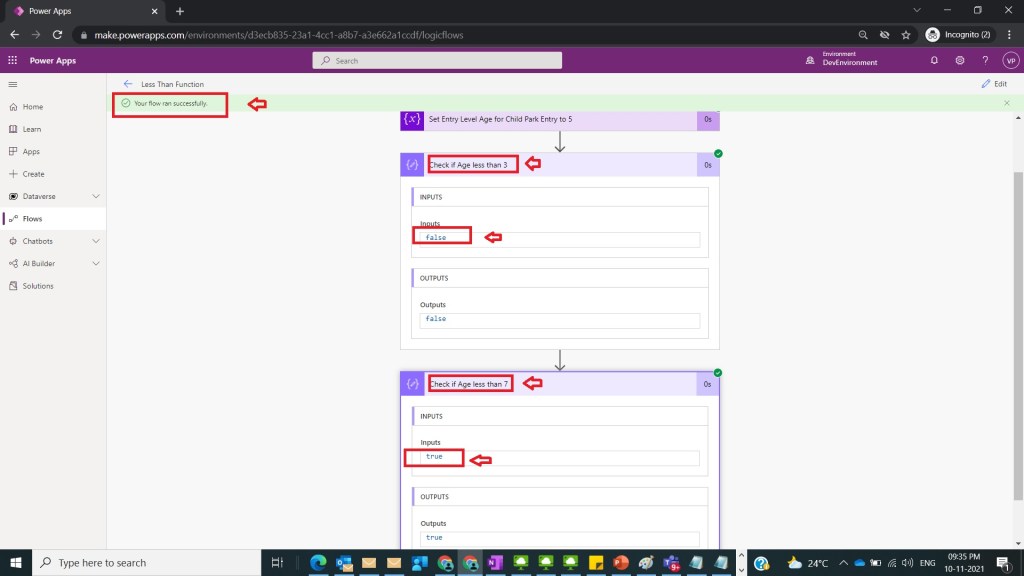

Step 6:

After Step 5, run and test the flow and observe false and true values were written for the compareTo values which are 3 and 7 in Step 4 and Step 5  as shown in the below figure

Note:

  1. Make sure to save and run the flow whenever you try expressions.
  2. MS documentation is found at here

Conclusion: In this way we can use Less than function so that basic comparison between integers in power automate can be done easily.
